STONEBLOC HELPS YOU MAXIMISE YOUR LAND WITH TIMELESS RETAINING. HOW DO WE DO THIS?
GREAT DESIGN.

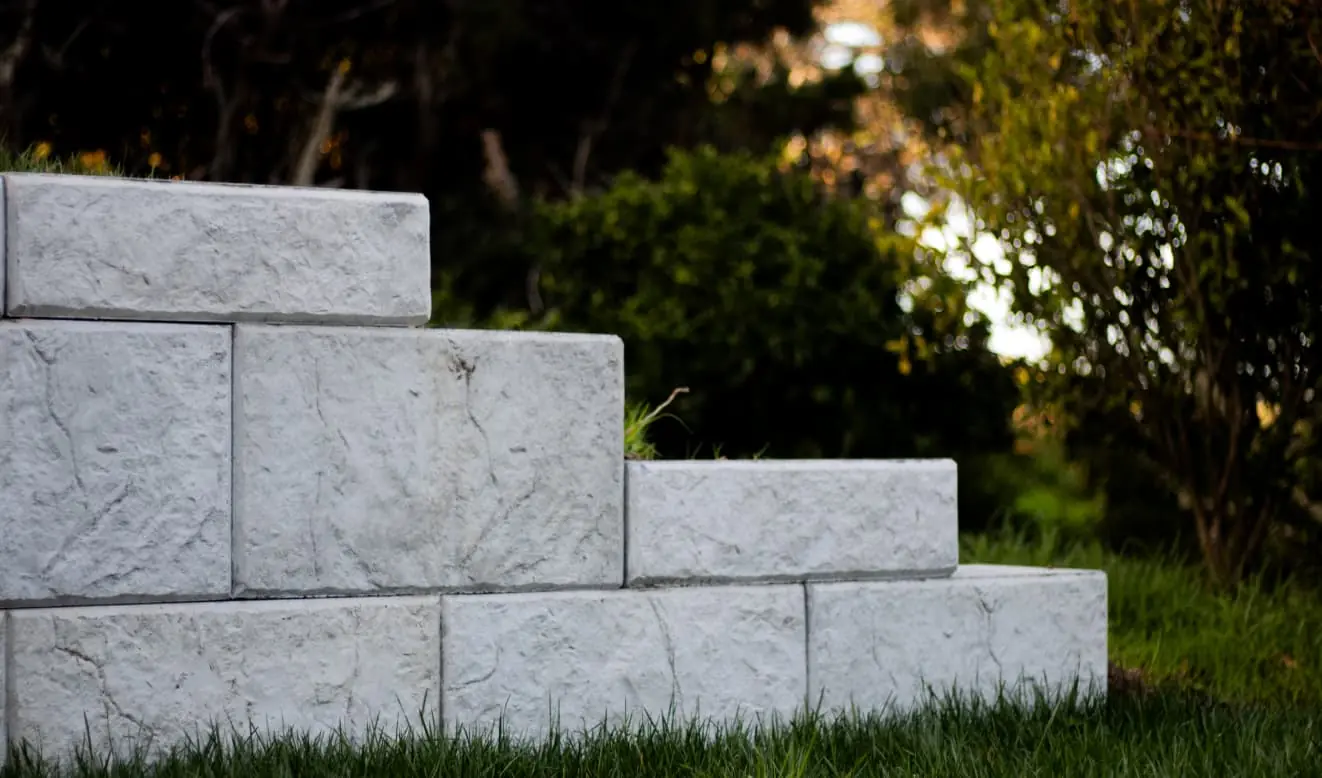

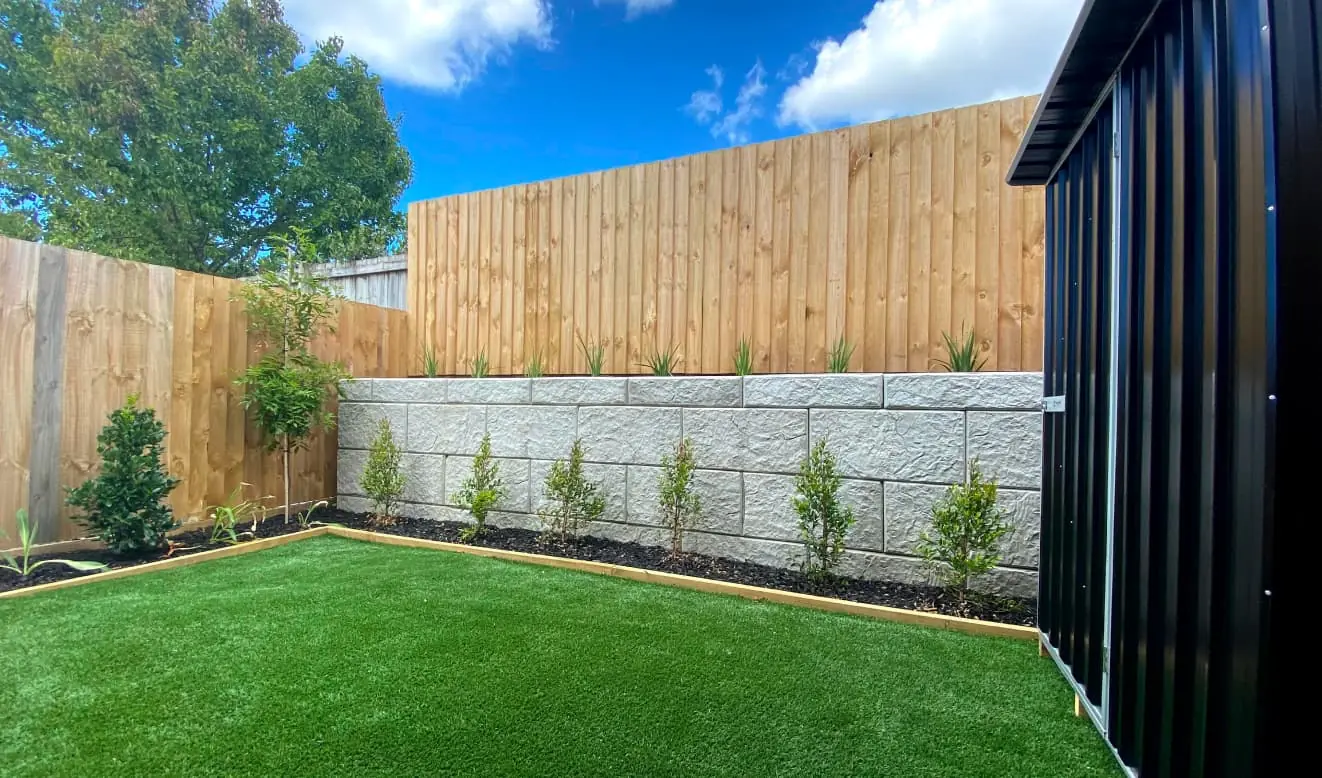

Stonebloc is a precast concrete retaining wall system that combines fast installation with unmatched durability. Its unique stonemasonry design creates a timeless aesthetic that complements any setting. Built to last for decades, Stonebloc is a solution that stands strong for generations. With minimal foundation needs and an efficient build process, it delivers both style and practicality.

Benefits of Interbloc

Faster Installation

Unrivalled Resilience

Timeless Aesthetics

Modular and Designed for Deconstruction

Faster Site Handover

Product Information

Stonebloc Brochure
Technical Information
Case Studies

Design Software

Envirobuild

A STANDARD STONEBLOC

OFFERS A RANGE OF DESIGNS FOR WALLS UP TO 2M HIGH

Each premium block includes a shear key, and a lifting pin, all designed to enhance structural strength and integrity. The shear key transfers shear forces from lateral loads between the structure and the key but does not resist overturning forces, which are managed by the weight of the concrete block.

Base Blocks

Base blocks provide a sturdy foundation for your wall, tailored to the specific height requirements of your structure.

800 Base

600KG

W: 800 x D: 800 x H: 400Mm

1200 BASE

900KG

W: 800 x D: 1200 x H: 400Mm

Standard Blocks

400 STD

150KG

W: 400 x D: 400 x H: 400Mm

800 STD

300KG

W: 800 x D: 400 x H: 400Mm

Flat Top Blocks

400 FT

150KG

W: 400 x D: 400 x H: 400Mm

800 FT

300KG

W: 800 x D: 400 x H: 400Mm

Capper Blocks

400 CAP

250KG

W: 400 x D: 400 x H: 200Mm

800 CAP

500KG

W: 800 x D: 400 x H: 200Mm

Wedge Blocks

Wedge blocks are crafted to incorporate smooth curves into wall designs seamlessly.

Right Ended

400 WEDGER

90KG

W: 400 x D: 400 x H: 400Mm

400 CAPWGR

45KG

W: 400 x D: 400 x H: 200Mm

Left Ended

400 WEDGEL

90KG

W: 400 x D: 400 x H: 400Mm

400 CAPWGL

45KG

W: 400 x D: 400 x H: 200Mm

Double Ended Blocks

These blocks ensure seamless integration and a cohesive finish across the retaining wall. They can be used for tapered transitions or wall ends, with options for both right and left ends, providing flexibility for your retaining wall design.
